Spur gears we manufacture are the most common type of gear, and are also the most simple. They have straight teeth that are produced parallel to the axis of the gear, therefore the most economical type of gear. Spur gears are not known to be the smoothest or quietest gears, but they are highly efficient and produce a lot of power. They run well at slow to moderate speeds, but they tend to vibrate and become noisy at higher speeds.
Details :
Range - upto 250mm Dia. 0.5 to 25 Module

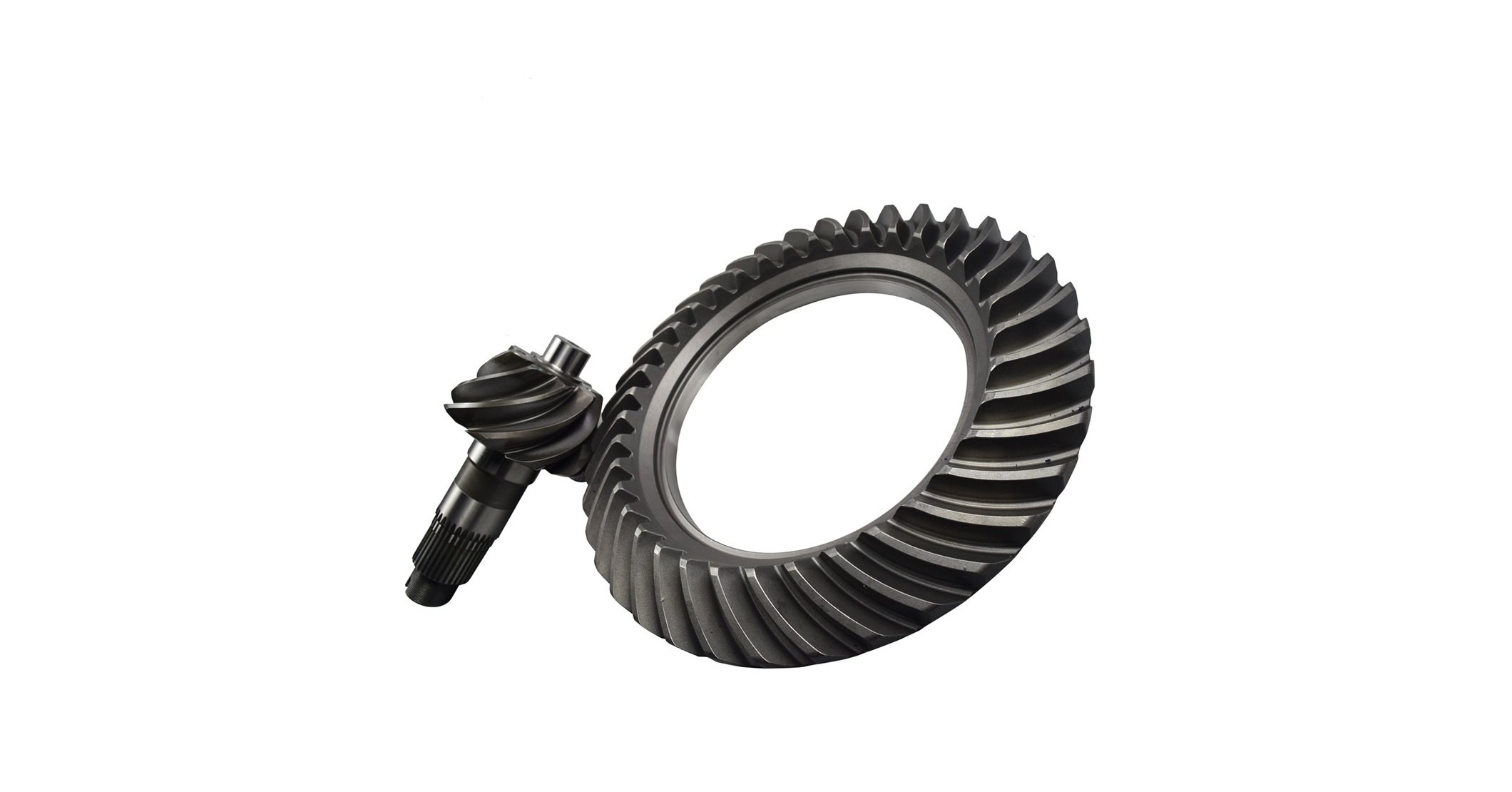

Spiral bevel gears are designed for applications that require high speed and high torque power. They can help cut consumer costs by providing long-lasting performance with minimal need for repairs or replacements. With spiral bevel gears, there is no need for offsets and a significantly reduced risk of overheating. Spiral bevel gears are used in situations where the axis of rotation of a shaft must change direction. An example of this is a car differential where the rotating prop shaft is turned through 90° to drive the wheels.
Details :
Range - upto 800mm Dia. Module - 16
A worm gear is a gear consisting of a shaft with a spiral thread that engages with and drives a toothed wheel. Worm gears are an old style of gear, and a version of one of the six simple machines. Basically, a worm gear is a screw butted up against what looks like a standard spur gear with slightly angled and curved teeth. It changes the rotational movement by 90 degrees, and the plane of movement also changes due to the position of the worm on the worm wheel (or simply "the wheel"). They are typically comprised of a steel worm and a brass wheel. A worm gear can have a massive reduction ratio with little effort also inability to reverse the direction of power
Details :
Range - Centre 1" to 25". Ratio - 6:1 to 60:1
A worm gear is a gear consisting of a shaft with a spiral thread that engages with and drives a toothed wheel. Worm gears are an old style of gear, and a version of one of the six simple machines. Basically, a worm gear is a screw butted up against what looks like a standard spur gear with slightly angled and curved teeth. It changes the rotational movement by 90 degrees, and the plane of movement also changes due to the position of the worm on the worm wheel (or simply "the wheel"). They are typically comprised of a steel worm and a brass wheel. A worm gear can have a massive reduction ratio with little effort also inability to reverse the direction of power
Details :
Power - Upto 90 KW Type - Foot & Flange Mounting Application - Agitators, Conveyors, Cranes, Mills, Cooling Towers

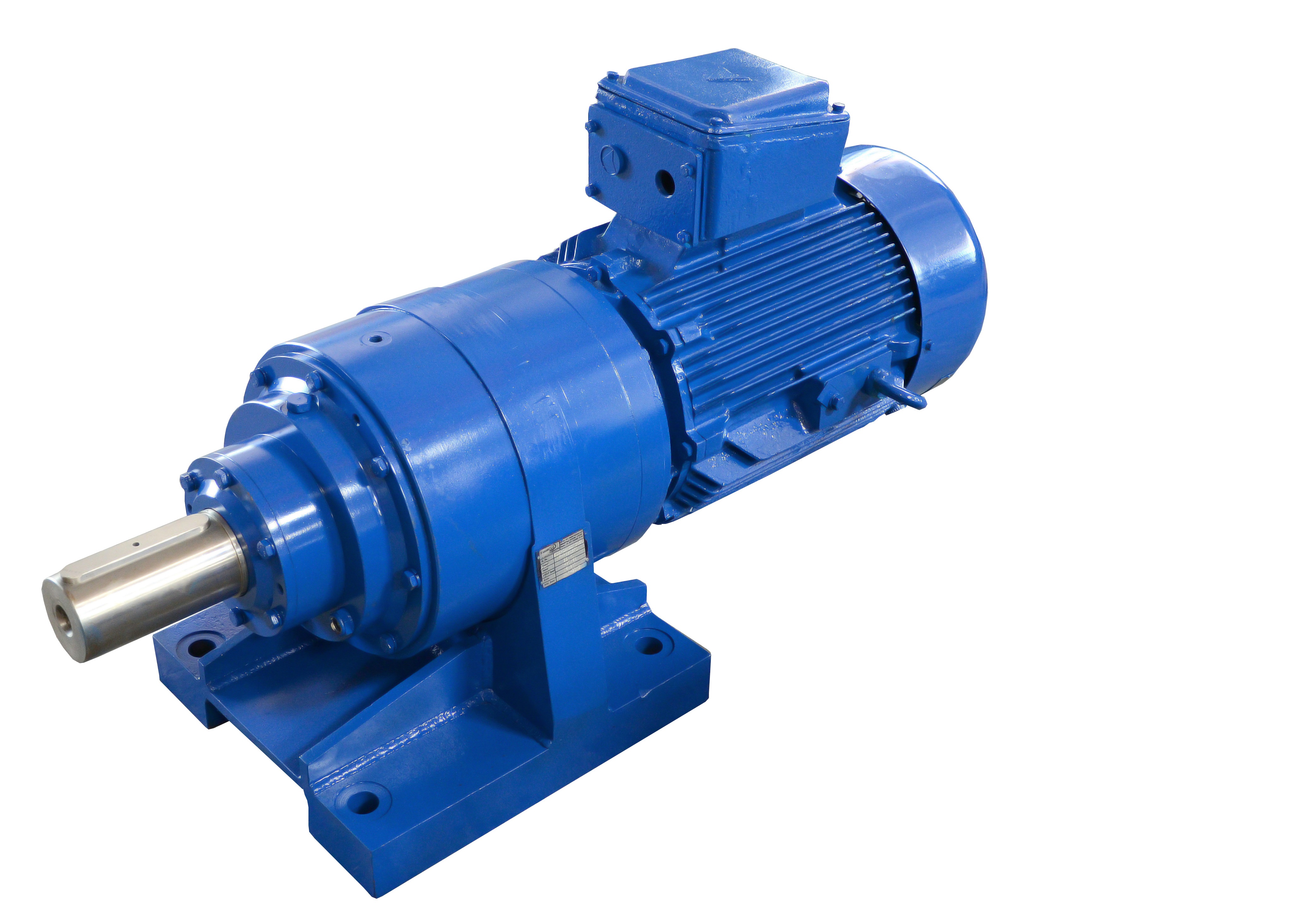

◆ High carrying capacity, high tooth surface hardness, high accuracy, high speed, high reliability and high transmission efficiency. ◆ Low noise, low cost, modular and standardized. ◆ High power density, small size, light weight, compact structure, several planet wheels transmit load at the same time, so that power is shunted. ◆ Up to 95% modular design, international production, faster production and logistics cycle. ◆ The comprehensive performance of the gearbox is comparable to that of the first-line international brands, and the price of the gearbox is close to the people. ◆ Easy to achieve input and output coaxial drive. ◆ Wide range of transmission ratio.
Details :
Range - Single Stage to Four Stages ratios upto 180 Type - Flange & Foot Mounted Application - Drive Screw, Segment Drive, earth Moving Equipment, Sugar, Defence.

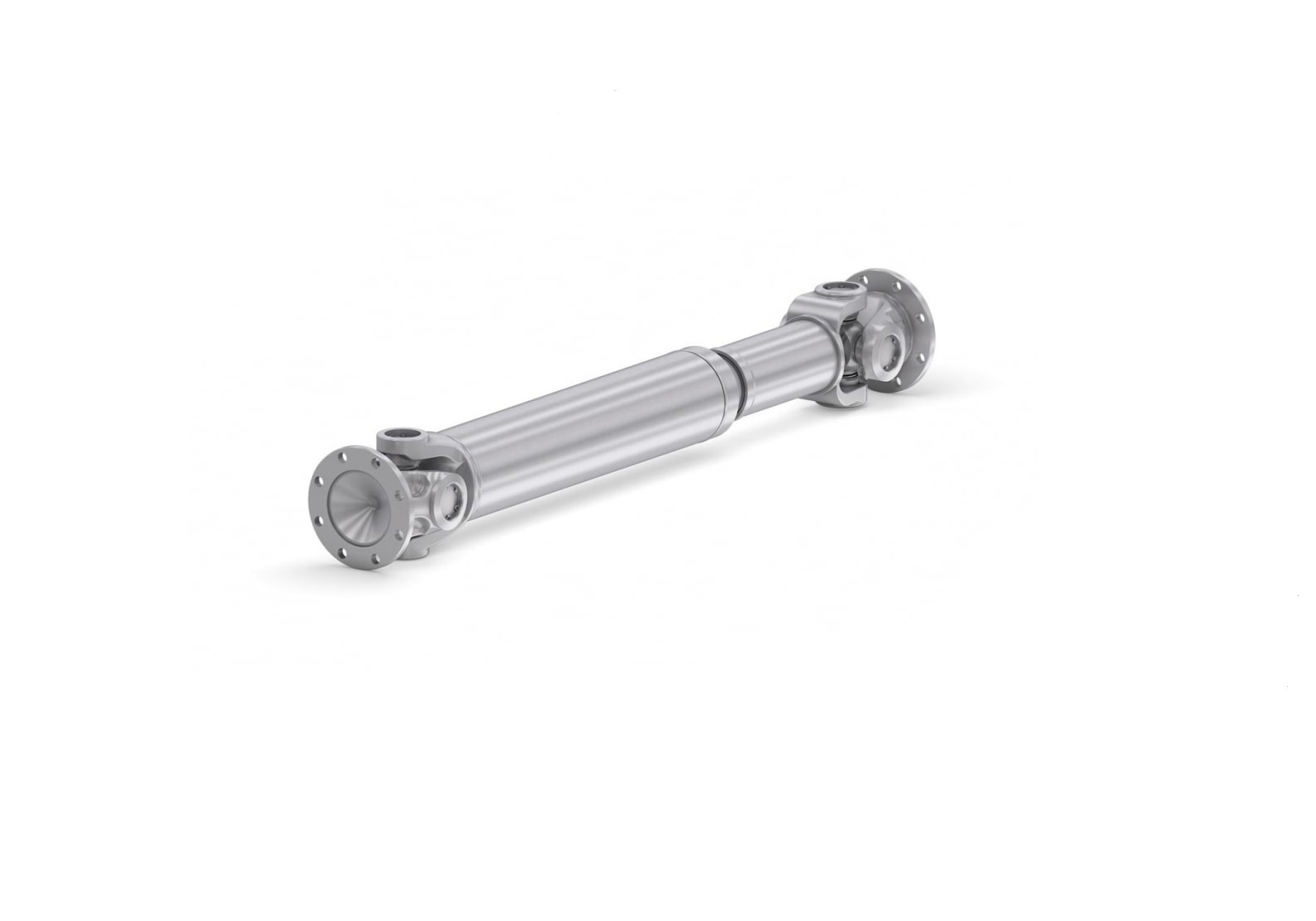

We manufacture Cardan Shaft which is a component for transmitting mechanical power and torque and rotation, usually used to connect other components of a drivetrain that cannot be connected directly because of distance or the need to allow for relative movement between them. As torque carriers, drive shafts are subject to torsion and shear stress, equivalent to the difference between the input torque and the load. They must therefore be strong enough to bear the stress, while avoiding too much additional weight as that would in turn increase their inertia.
Details :
Range - Upto 50,000 NM Application - Steel Plants, Earth Moving Equipment
We manufacture Gear unit which is a single stage step-up or reduction Gear unit with horizontally offset. It is designed as a double helical Gear unit. High Gearing quality and tooth flank modification adapted to actual tooth load allow for extremely high pitch line velocity. Double helical Gear units are simple to design & manufacture and compact. Double helical gearboxes are more efficient than single helical gear boxes. This Gear unit is used in high speed plants such as turbo generators, turbo Compressor, Boiler feed pump application etc.
Details :
Range - Upto 8000 KW Input/Output Speed - 10,000 Rpm / 1500 Rpm
Our worm gearboxes have earned a reputation to be an industry benchmark worldwide. Our success came from our relentless drive for quality with state-of-the-art technology, all while offering worm gearboxes are affordable prices. High flexibility accorded through a wide choice of mounting options, shaft configurations and motor interfaces, makes the Entell Cad Engineering worm gearbox the default choice for the industry. The helical-worm and the double-worm version, with or without the torque limiter, add up to the advantage, creating a highly versatile drive system.
Details :
Power - Upto 300 KW Ratio - 5.1 to 3000:1 Type - Vertical, Over Drum & Hallow Shaft Output Application - Earth Moving Equipment, Agitators, Conveyors, Cranes, Elevators, Small Ball Mills, Mixers, Cooling Towers

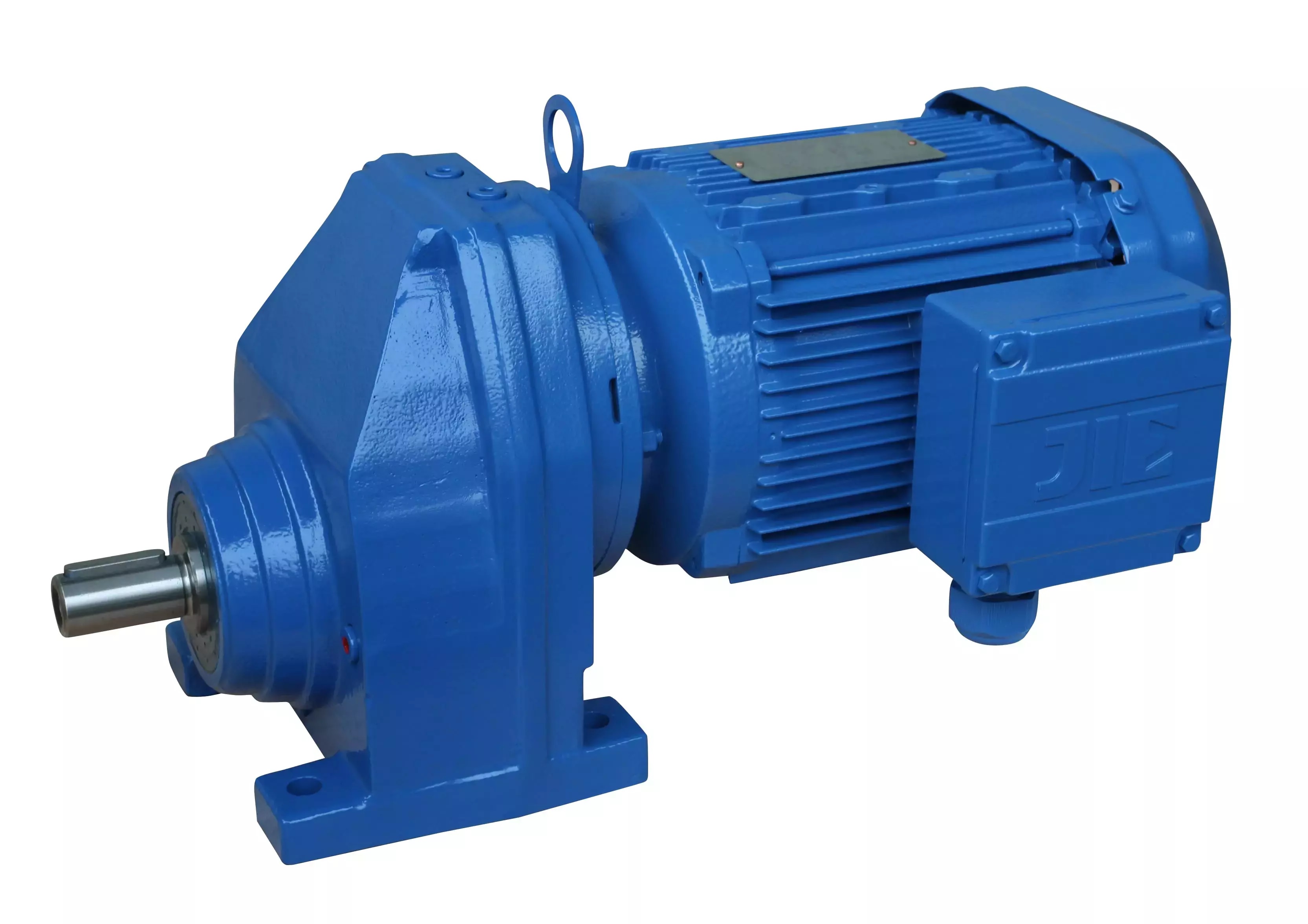

Extremely high output torques, silent operation and a long service life: These are the defining features of helical and bevel helical gearboxes from Entell Cad Engineering. Our range of helical, helical bevel, spiral bevel gearboxes can be easily configured to industrial process parameters thanks to a high range of gear transmission ratios. The high level of efficiency of our gearboxes ensure an ideal drive package that meets demanding requirements of the industry. In connection with three-phase AC and servo motors, Our helical gearboxes form an extremely compact unit. They are available in a 3 and 4 stage design with high torque and wide range of gear ratios.
Details :
Power Range upto - 8000 KW Ratio Range - 5:1 to 200:1 Type - Solid & Hallow output shafts Application - Agitators, Conveyors, Cranes, Ball Mills, Mixers, Rolling Mills, Mould Oscilators, Steel Transfer cars, Wind Mills, Coal Mills, Fin Cooler Drives
